The Industrial Endurance Breakthrough of the Oscillating Knife composite material digital cutting machine
In view of the fact that traditional cutting methods are inefficient and prone to delamination/burning during processing, the newly upgraded High-Frequency Oscillating Knife Technology, integrated into a Composite Material Digital Cutting Machine, adopts dynamic high-frequency linear oscillation, using mechanical motion to comprehensively replace the heat-affected zone and blade tearing effect, achieving zero thermal damage cutting of composite materials. The CNC integrated control system and servo-driven vibrating knife system work synergistically to ensure smooth and clean cutting edges. For process scenarios such as high-hardness carbon fiber prepregs, honeycomb panels, and glass fiber cloth, the cold cutting method of the vibration knife within the Composite Material Digital Cutting Machine effectively avoids delamination and excessive dust, while also preventing the problem of edge melting caused by heat.
After integrating the intelligence algorithm, RMY1625 Composite Material Digital Cutting Machine supports both single-sided/bidirectional feeding, and is equipped with adsorption mute technology and CNC automatic tool change system. The operator can quickly complete profiling, nesting, and hole cutting at one time through the touch screen, greatly saving the mold opening cost and delivery time that traditional machining relies on. At present, this oscillating knife cutting platform has been deeply used in many high-standard fields such as aerospace, automobile manufacturing, marine equipment, and wind power blades, ensuring high repeatability and processing stability.
REMEYA Composite Material Digital Cutting Machine Key Technical Parameters
The industrial-grade design of the REMEYA Series ensures long-term, high-load cutting tasks. The completely sealed electric cabinet and imported transmission system provide a solid hardware guarantee for 24/7 continuous production.
| Model Options | RMY-1625 / RMY-2516 / RMY-3016 (Customizable) |
|---|---|
| Working Area (Effective) | 1600×2500mm, 2500×1600mm, 3000×1600mm |
| Max. Cutting Speed | 100–1500 mm/s (configurable by material density) |
| Cutting Precision / Repetition Accuracy | ±0.1 mm (precision can be enhanced to ±0.01 mm) |
| Cutting Thickness (Single Pass) | 0.1 mm – 60 mm (depending on material type) |
| Knife Oscillation Frequency | 6,000 – 18,000 RPM (electronic control adjustment) |
| Main Tools | Oscillating/Vibration Knife, Drag Knife, Creasing Wheel, Milling |
| Material Fixing Method | Multi-zone Vacuum Adsorption + Conveyor Belt (optional) |
| Drive System | Imported Servo Motor + Linear Guide Rail |
| Power Supply | AC 220V / 380V ±10%, 50/60Hz, 7.5kW – 11kW |
How It Works: From CAD Design to Finished Composite Part
The REMEYA oscillating knife cutting system follows a streamlined digital workflow, eliminating manual die-making or secondary trimming. Operators can go from drawing to cutting in three simple steps:

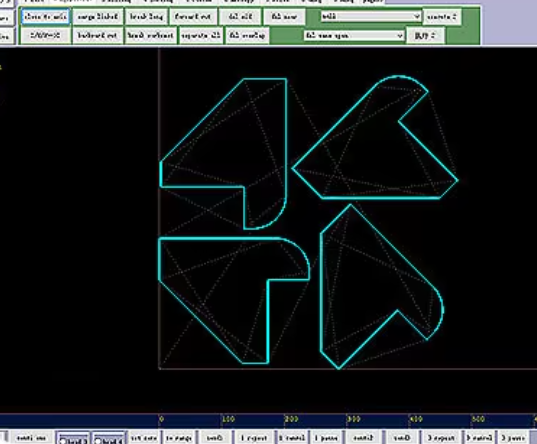

Step 1 – Import & Nesting: Load DXF/AI/PLT files via USB or network. The built-in nesting software automatically arranges parts to maximize material utilization (saving up to 15% of raw materials).

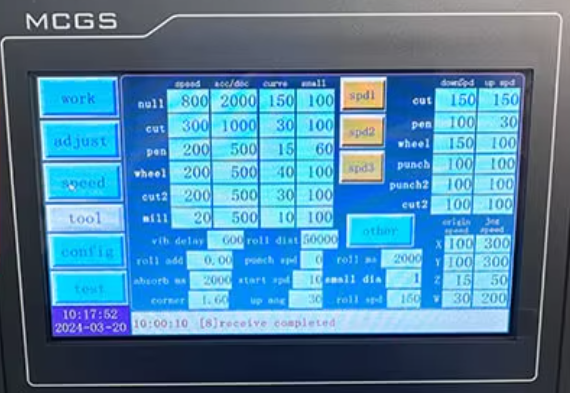

Step 2 – Tool & Parameter Selection: Select the appropriate oscillating knife or drag knife on the 10-inch touchscreen, set cutting depth and speed based on material type (carbon fiber, honeycomb, foam, etc.).

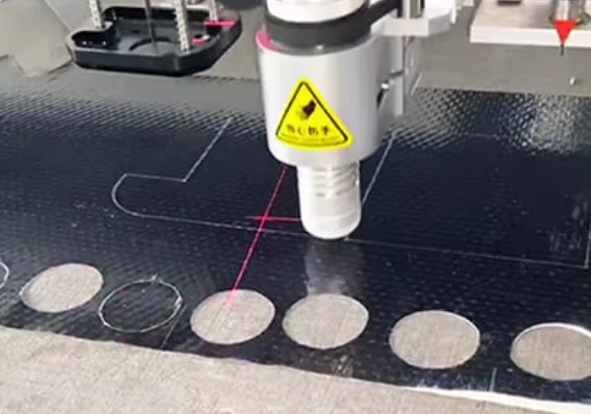

Step 3 – Automatic Cutting & Unloading: Start the vacuum adsorption to fix the sheet. The machine cuts at up to 1500 mm/s with zero thermal effect. After cutting, the multi-zone vacuum releases easily for finished part pickup.

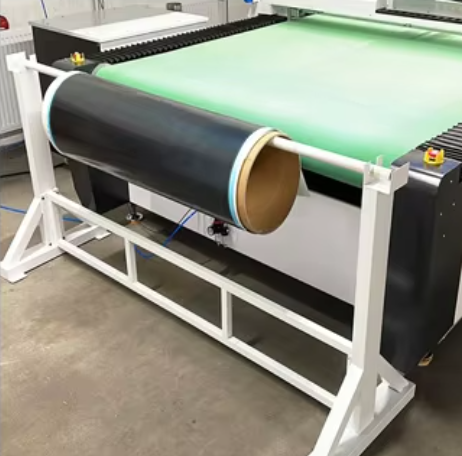

Optional conveyor belts are available for inline production, enabling continuous feeding, cutting, and unloading without stopping.
Multi-Industry Application Advantages of Composite Material Digital Cutting Machine Technology
The REMEYA oscillating knife cutting system breaks the constraints of single-material processing and can easily handle almost all flexible and semi-rigid composite sheets. The Vibration Knife Composite Cutting Machine is equipped with a multi-functional tool head. Users can switch between oscillating knife, pneumatic knife, drag knife, crease wheel or marking pen in one operation, realizing a true “one machine for multiple uses” manufacturing concept. For composite materials with different amounts of glue and densities, the oscillating knife can also protect the physical properties of the material through cold cutting, completely solving the risk of edge burning or shedding caused by diamond or laser cutting.
Precise Cutting for Composite Materials
- Aerospace materials: carbon fiber prepreg, glass fiber cloth, aramid honeycomb, composites, providing distortion-free, dust-free cutting.
- Automotive & marine interiors: acoustic felt, headliners, carpet mats, vinyl ester panels, and rubber sealing strips.
- Industrial insulation & gaskets: fiberglass wool, EVA foam, mullite fiber board, polyester felt, nitrile rubber, and cork rubber.
- New energy & construction: composite film insulation materials, sealing pads, and leather/fabric composites.
Application Materials

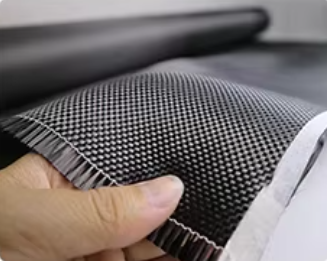

carbon fiber

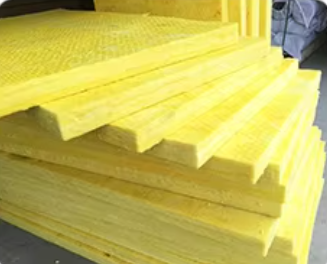

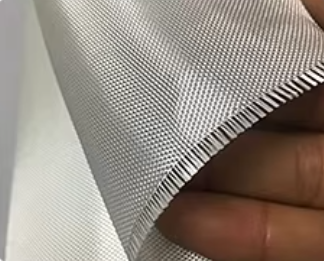

fiberglass cloth

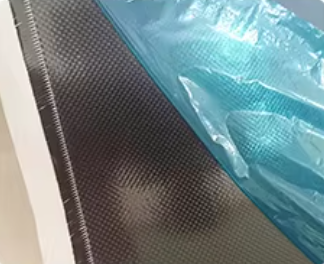

prepregs

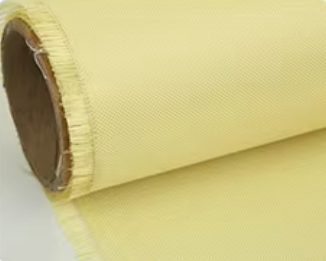

aramid
fiberglass panel
Composite Material Digital Cutting Machine Application Industries

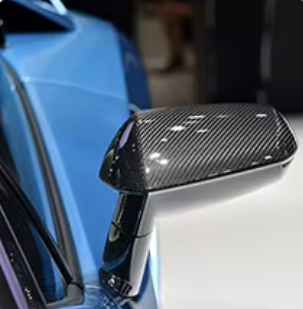

automobile
protective gear

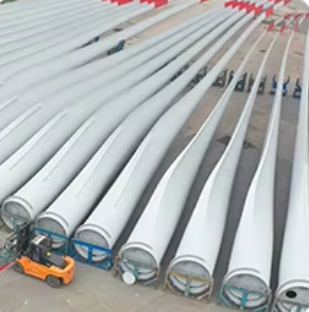

energy
aerospace
bicycle
sports
Simple FAQ for Choosing the Composite Material Digital Cutting Machine
Because polymer materials differ greatly in properties, it is recommended that customers determine the specific configuration through material testing. Unless otherwise required, the commonly used configurations are as above, which meet most flexible cutting needs.
- Q1: What thickness range can this machine handle in one single-pass cut?
A1: The maximum stable thickness for a one-time pass is 60mm (depending on material density). For multi-layer low-density composites, the automatic feeding mode can achieve stacking cutting to increase efficiency. - Q2: How to solve the problem that the cut material has a burning smell or stickiness?
A2: The vibration knife uses mechanical high-frequency cutting to completely avoid contact heating, truly achieving zero thermal damage, keeping the edge clean and flat, and leaving no burnt marks. - Q3: Is this machine suitable for cutting sample prototypes for small batches?
A3: Yes, this digital cutting machine is very suitable for sample prototyping and small-to-medium batch customized production. It quickly responds to DXF/PLT/AI pattern files, eliminating the time and cost of making physical molds. - Q4: What should be paid attention to in daily maintenance?
A4: Mainly check the air pressure and knife blade wear. We provide guidance manuals and technical support videos to ensure the machine is efficient and stable in long-term operation.
Launch Guide: Why Choose the REMEYA Composite Material Digital Cutting Machine?
The following 7 core highlights explain why the REMEYA Oscillating Knife Cutting Machine is the ideal choice to optimize your production line:
- 1. Zero Thermal Damage Cold Cutting: Officially bids farewell to the burning and deformation of materials caused by lasers, protecting material properties.
- 2. No Mold Cost: Completely eliminates the production and commissioning time of physical molds, accelerating product iteration speed.
- 3. Multi-Tool Integrated Process: Supports oscillation, pneumatic, drag knife, creasing wheel, milling, marking, meeting the full range of needs from marking to grooving.
- 4. ±0.1mm High Precision Cutting: Combined with servo control to ensure stable batch consistency, solving the problem of uneven curves in manual cutting.
- 5. Intelligent Nesting & Material Saving: Built-in software automatically optimizes typesetting to maximize material utilization, greatly reducing raw material costs.
- 6. Eco-friendly & Safe Operation: Low noise, no dust, no smoke, meets modern safety and environmental protection workshop standards.
- 7. Quick & Easy File Compatibility: Supports mainstream CAD file import, easy to get started with a touch screen, providing 7*24 hours of technical response.
Product Certification & After-Sales Service
REMEYA strictly follows the quality system, and the whole machine has passed stringent offline testing to ensure seamless docking of mechanical performance with electrical control. We provide one year warranty for the whole machine and lifetime technical support, ensuring worry-free use of the equipment.
- Manufacturer direct sales + online/offline technical training
- Videos, manuals, and real-time online remote assistance
- CE, ISO9001 certification and multiple patent awards
Contact us to schedule a free live material test and experience the powerful efficiency of the vibrating knife cutting machine!
