Sealing gaskets are small components with a big responsibility. But until now, producing them precisely and cost-effectively has been a challenge. Die cutting locks you into high tooling fees and long lead times. Laser cutting leaves burnt edges on rubber and PTFE – a hidden risk for any sealing application. REMEYA RMY1625 CNC Oscillating Knife Gasket Cutting Machine changes that story. It’s a CNC-controlled oscillating knife cutter that delivers ±0.1mm accuracy, eliminates dies, and never overheats your materials.
Why the industry is switching to oscillating knife technology
Because the CNC Oscillating Knife Gasket Cutting Machine cutting relies on mechanical vibration rather than heat, you won’t see smoke, scorch marks, or any change in the material’s inner structure. Take rubber for example: it stays flexible. Graphite sheets won’t delaminate. PTFE surfaces remain just as smooth as before cutting – no melted spots, no hardening. For workshops tired of burned edges or waiting weeks for dies, this is a practical way forward.
REMEYA RMY1625 CNC Oscillating Knife Gasket Cutting Machine glance
The RMY1625 CNC Oscillating Knife Gasket Cutting Machine cutting speed of 1800 mm/s while holding a positioning accuracy of ±0.1 mm. Its frame is built from 1.5 tons of welded steel that has been stress‑relieved – that keeps the machine stable over years of heavy use. The standard work area is 1600 by 2500 mm, and we can adjust that if you need a different size. When it comes to thickness, the machine cuts soft rubber up to 50 mm. File support includes DXF, PLT, AI, and CDR, so you don’t need any CAM conversion. And the vacuum table comes with intelligent zoning, meaning you don’t have to clamp anything down manually.
[Insert image: work area with vacuum grid and tool head]

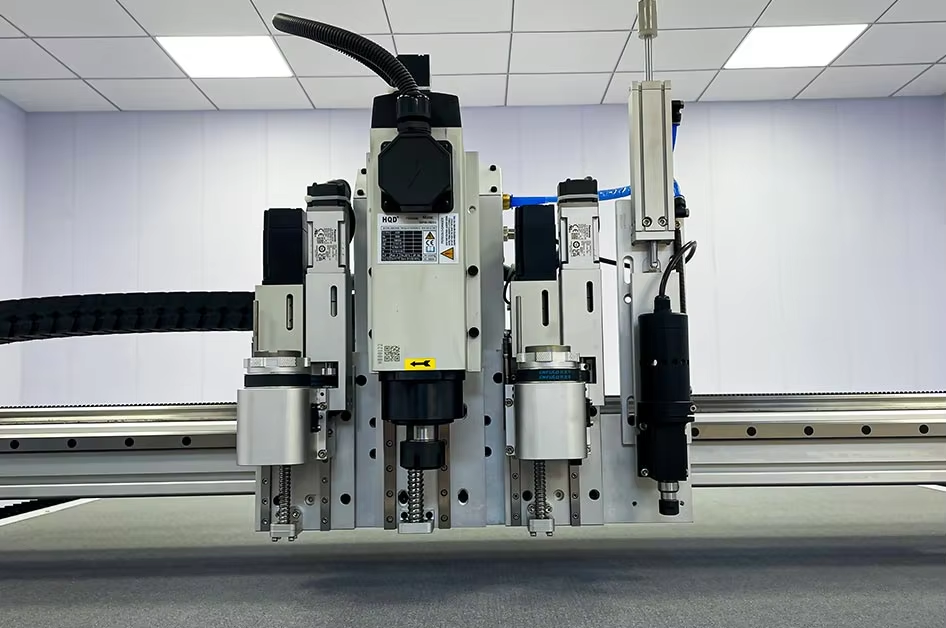

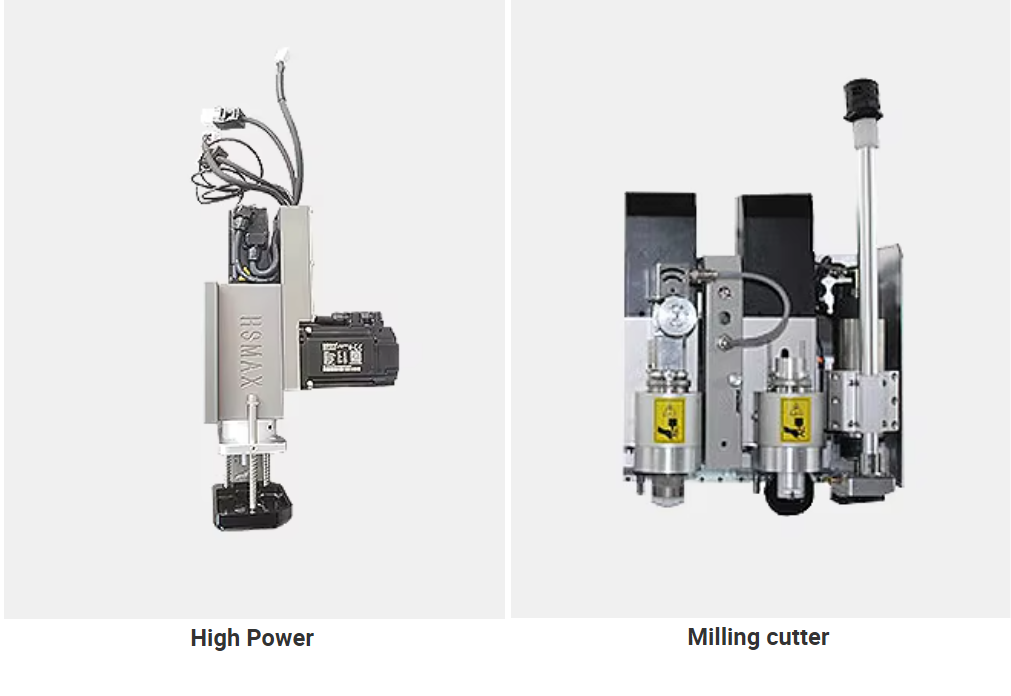

Cutting head
Combining cutting, punching, and marking techniques, different combinations of cutting heads can be used to complete various processing requirements.

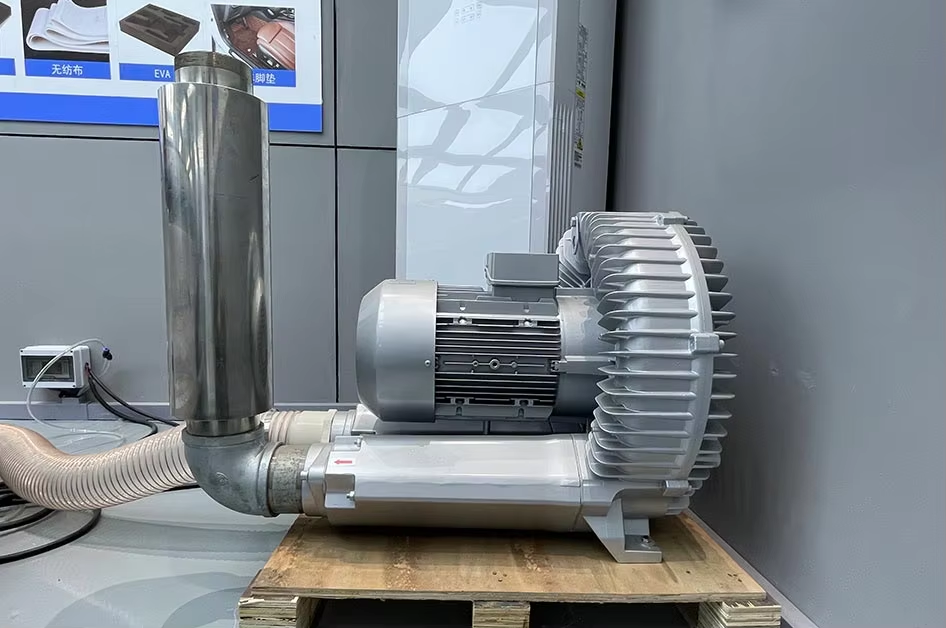

High pressure turbine fan
Vacuum adsorption ensures a firm grip on the material, without worrying about material displacement during the cutting process.

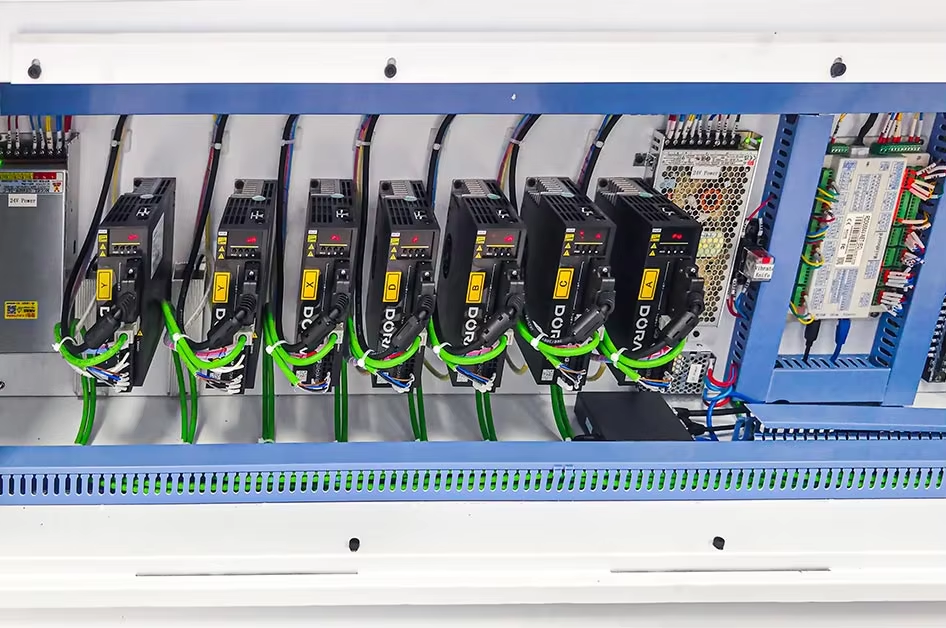

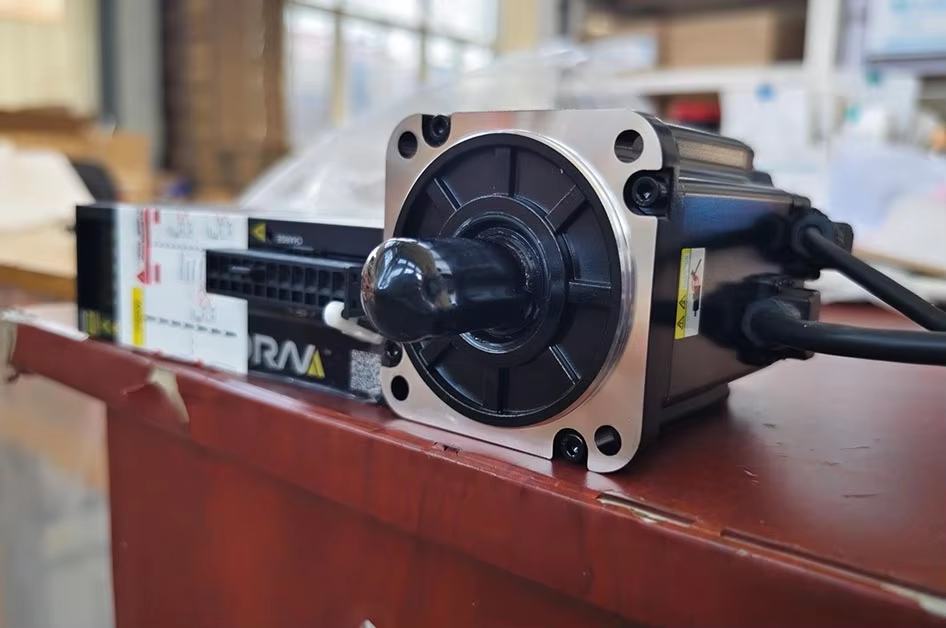

Servo motor
Process data transmission cutting, more precise cutting.
Control system
Intelligent layout cutting optimal path, cutting more material efficiently.

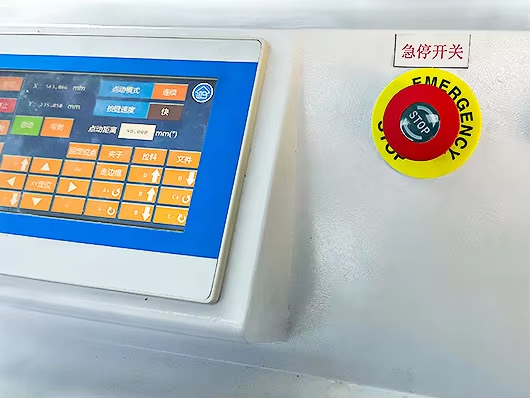

Control Console
It is the “command center” of the entire device, integrating core functions such as operation, settings, and monitoring.

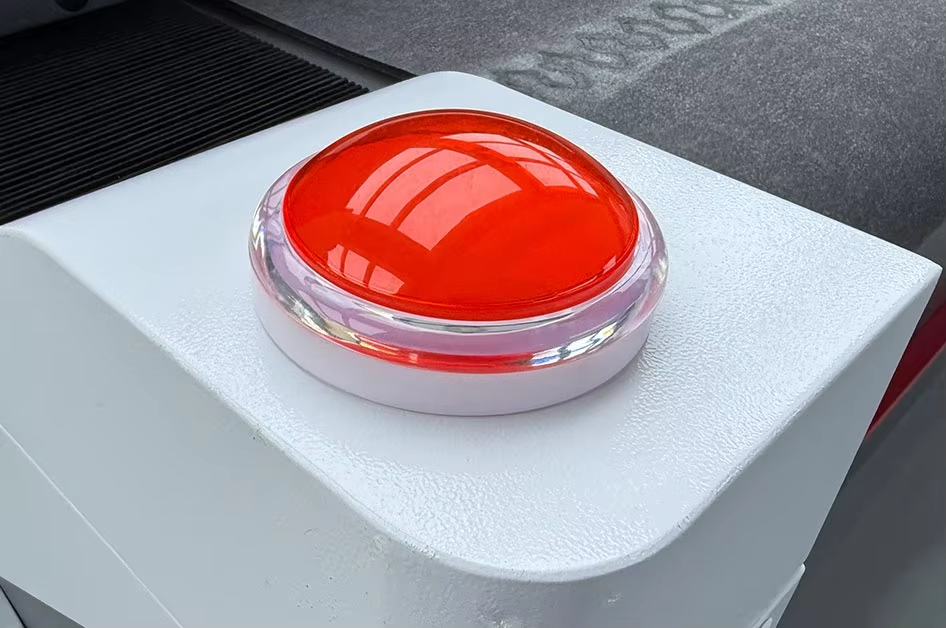

Safety protection
Intelligent collision avoidance and blocking system ensures the safety of personnel operation.

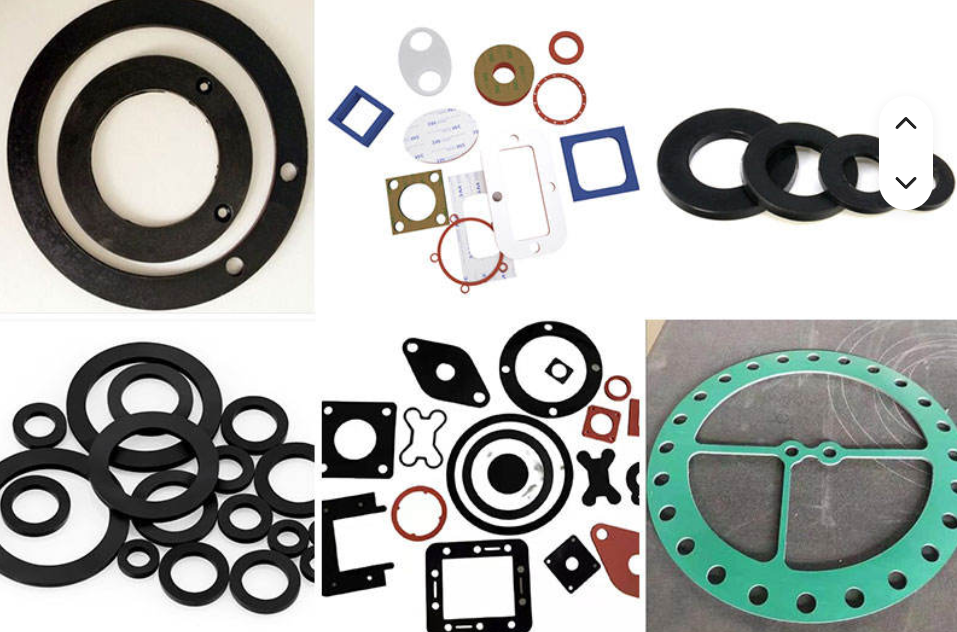

The machine works with a wide range of sealing materials: rubber (NBR, EPDM, silicone, Viton), PTFE/Teflon, graphite sheets, non‑asbestos, aramid fiber, cork, rubber‑fiber composites, PVC, foam, and felt.

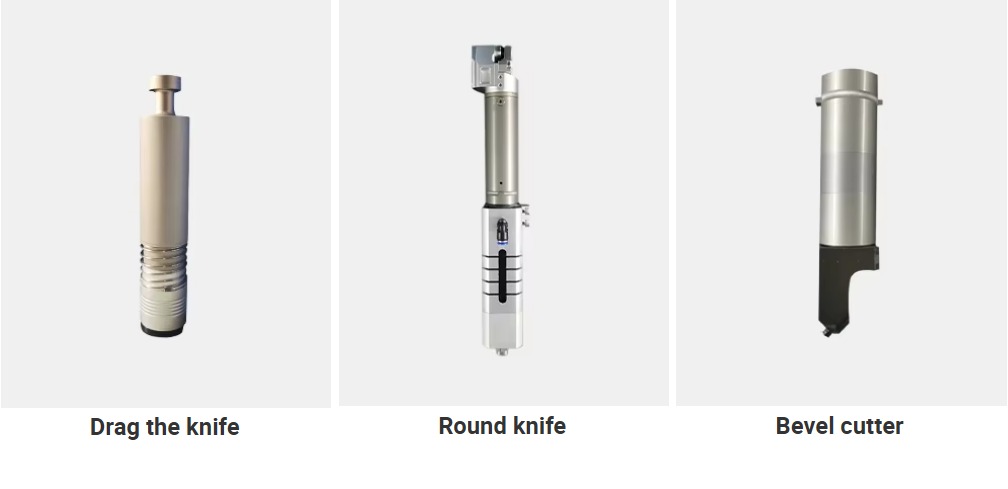

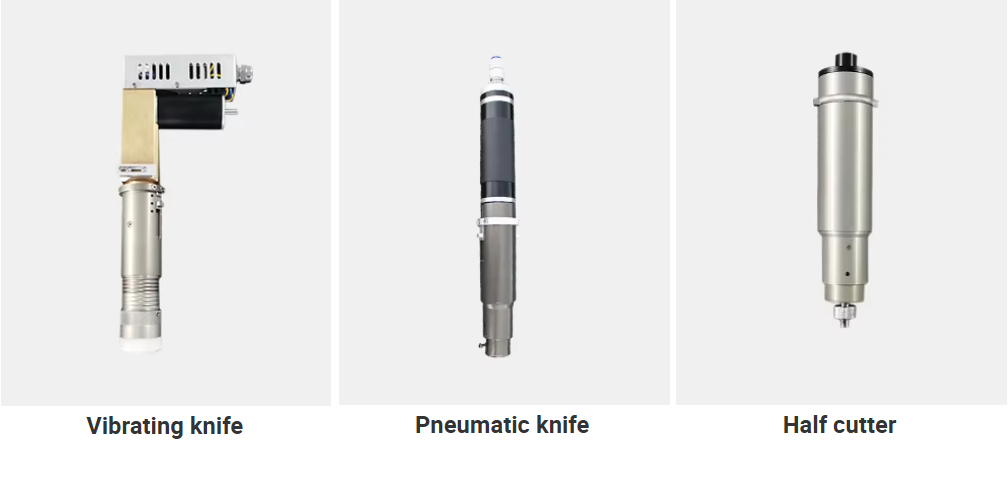

CNC Oscillating Knife Gasket Cutting Machine Tool Selection
Cold cutting vs. thermal cutting – the difference is visible

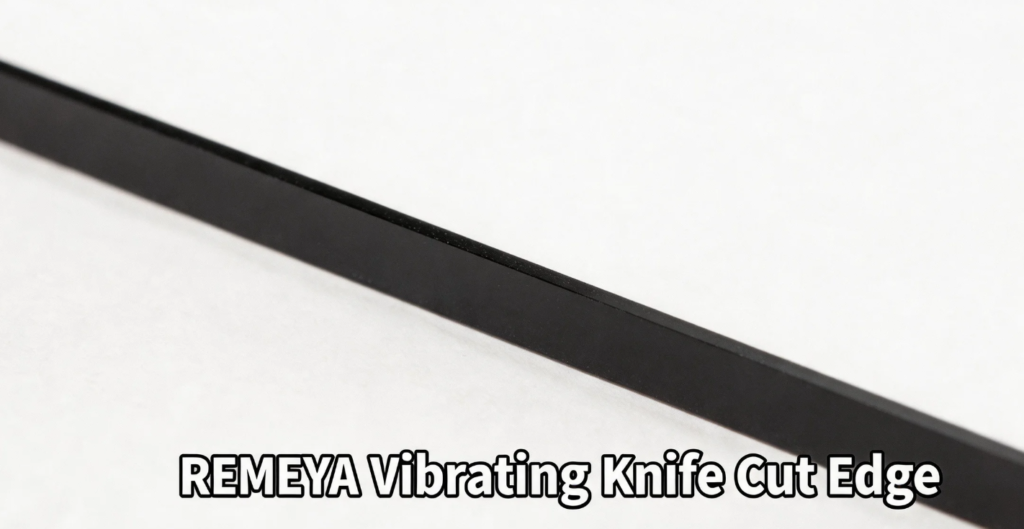

Laser and plasma cutters generate heat that alters the molecular structure of elastomers. A PTFE gasket cut by laser often shows a darkened, brittle edge – exactly where the seal contacts the flange. An oscillating knife leaves a clean, light‑colored edge with no change in hardness. For applications that require certification or long service life, this difference matters.
Made for real‑world gasket production
The RMY1625 doesn’t just cut faster; it changes how you run your shop. Because there are no dies, a new gasket shape is just a CAD file away. You can accept small‑batch custom orders without calculating tooling amortization. The intelligent vacuum zoning holds the sheet flat, even when cutting intricate shapes, and the quick‑change tool system lets you switch between blade types in under one minute.
Optional upgrades for higher automation
- CCD vision register – for cutting printed or pre‑marked sheets
- Automatic roll feeder – continuous cutting from rolls of rubber or PTFE
- Remote service module – fast troubleshooting via internet connection
- Extended tool kit – 5 specialized blades for different durometers
Start your trial without commitment
We understand that every material behaves differently. That’s why REMEYA offers a free sample cutting service. Send us your CAD drawing and a piece of your material (A4 size is enough). We’ll cut it on an RMY1625 and ship the gasket back to you. See the edge quality yourself. There’s no pressure on your side, and we don’t sneak in any extra charges.
Common questions buyers ask us
What’s the smallest hole the machine can make?
That depends on the material, but in most cases the oscillating knife handles internal holes down to 3 mm across. Some rubber compounds allow even smaller diameters.
Does operating this machine require special training?
Not really. If you’re comfortable using a computer, you can learn the basics in about two hours. The software interface is built for shop floor use, not for programmers. Full training takes one day, on‑site or remote.
Can I cut very thick rubber gaskets (e.g., 30mm)?
Yes, but we recommend a multi‑pass strategy. The RMY1625 supports automatic depth passes. For thick, hard materials, a test cut is advised.
How does warranty and after‑sales support work?
We give you a standard 12‑month warranty that covers mechanical and electrical components. During and after that period, we offer online troubleshooting, fast shipping of spare parts, and you can also choose an on‑site service contract if you prefer someone to come over.
