Product Description

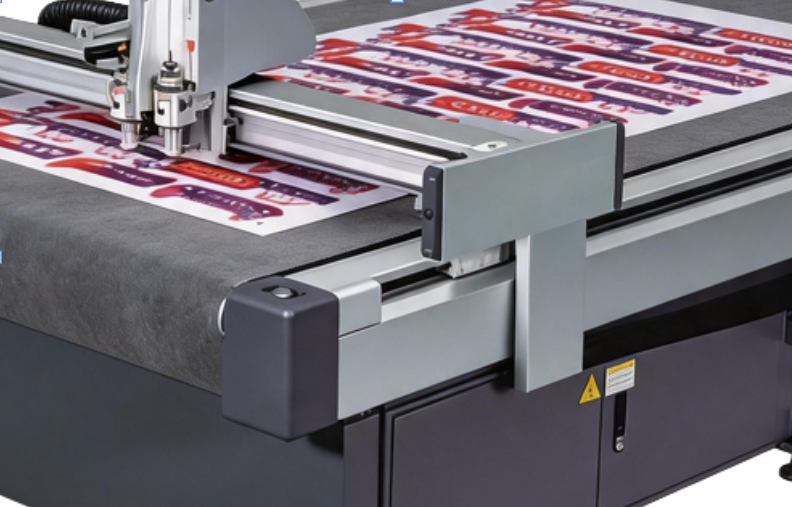

High-precision automatic visual edge patrol cutting machine for labels, signs, advertising cards, and cardboard. Equipped with CCD camera for real‑time contour recognition, delivers burr‑free kiss‑cut and through‑cut on self‑adhesive vinyl, paperboard, and corrugated board. No molds needed — ideal for on‑demand sticker, signage, and packaging production.
Specification
| Model | RMY-ZB1625 |
| Working size | 1600mm*2500mm |
| Suitable for the industry | Advertising industry |
| Fixed mode | Vacuum adsorption |
| Cutting tools | Oscillating knife tool,Kiss cut tool,Spindle |
| Transmission system | Servo motor,Rack drive,Double motor and drive for gantry |
| Voltage | 220/380V,50/60HZ |
| Power | 11KW |
| Safty device | Anit-collision switch,Emergency stop at four corners |
| Cutting speed | 400-1200mm/s(According to materials) |
| Reset accuracy | 0.1mm |
| Language | English,Chinese,Spanish,Korean,Russian,Thai |
| Support software | Auto CAD,CorelDRAW,lllustrator |
| Support format | DXF,PLT,PDF,AI |

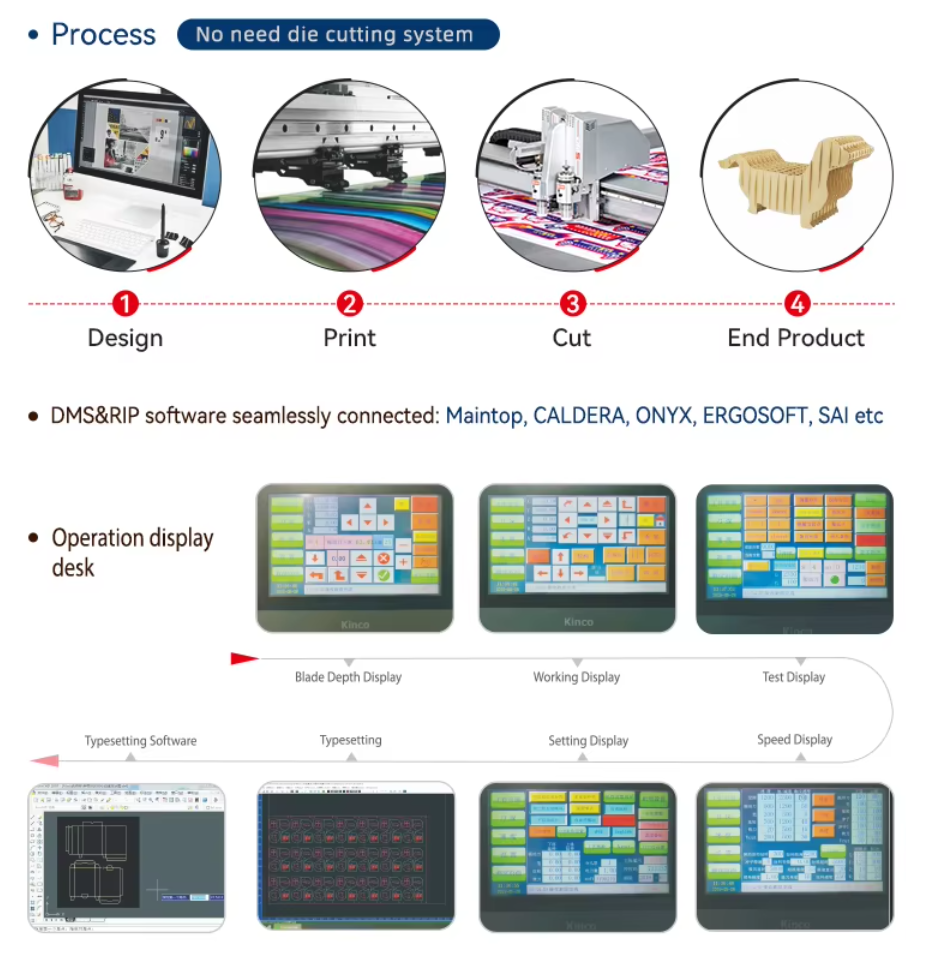

Digital cutting solution
Machine Applications
banner
sticker
packaging
Machine Tools

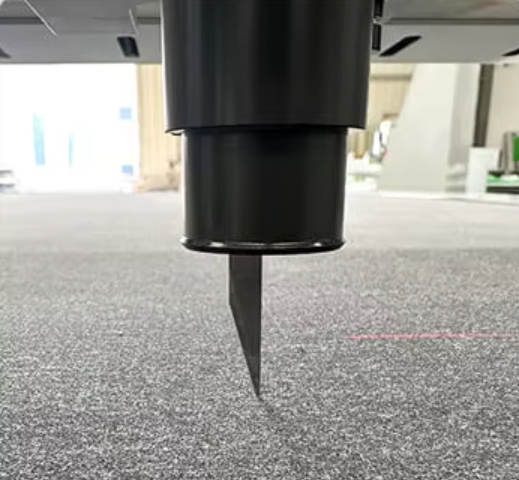

Cutting Tool：
oscillating knife blade

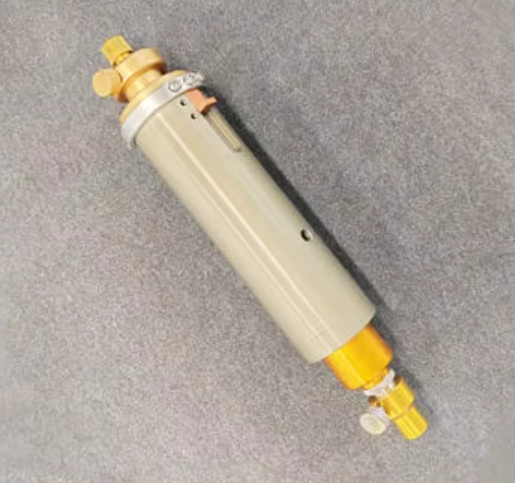

Kiss Cut Tool：
sticker half cutting

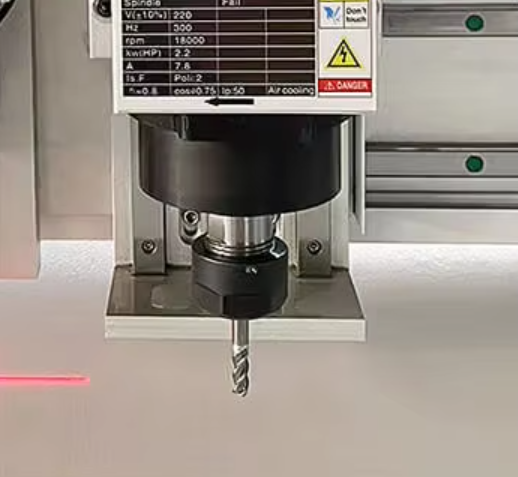

Milling Tool：
cut hard material like acrylic

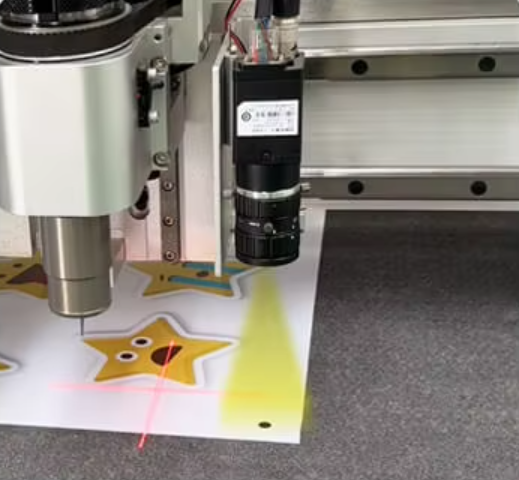

CCD Camera：
Print sign positioning cutting
FEATURES & DETAILS

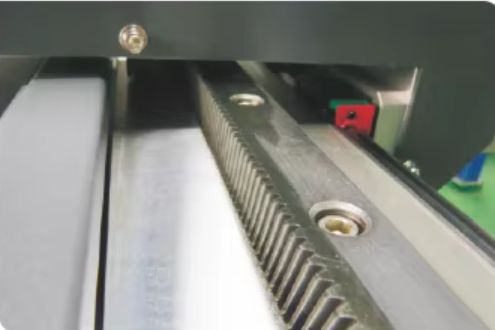

Imported High PrecisionRack
Make hard material cutting with more powerful,and ensure the cutting with higher precision.
Safety Anti-collisionSystem
Safety anti-collision system is to ensure thesafety of operators.

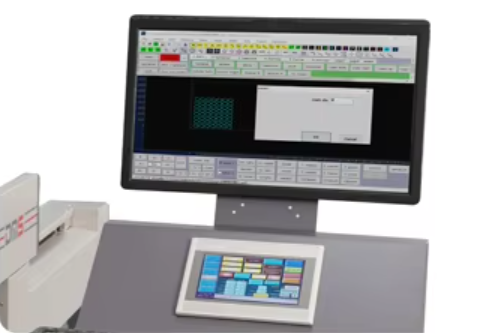

Control System
Independent research and development ofhuman-machine interface operating system,humanized design intelligent recognition of knifecutting, fast capture of cutting targets.

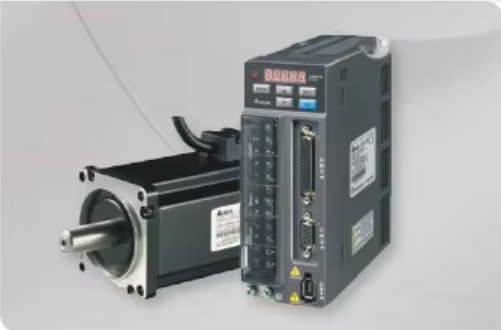

Imported Servo Motor
The machine with more stable performanceand higher precision.
